Romex WHG EA is a two-component, self-levelling coating based on epoxy resin, characterised by very high conductive properties - electrostatic conductivity of 106Ω. It is intended for protecting AE areas in accordance with the DIN 61340-4-1 standard.
The product provides very high mechanical resistance. It is suitable for areas where very high abrasion resistance is required (high-intensity forklift traffic).
The Romex WHG EA coating also demonstrates good chemical resistance. It is resistant to many solvents, fuels, oils, mineral acids, alkalis and salts. It is easy to keep clean.
Romex WHG EA features fire resistance class Bfl-s1 (flame-retardant flooring). It is suitable for creating a non-sparking floor and for use in rooms intended for the production of explosives and Class 1.1D black powder - see the confirmation.
The Romex WHG EA coating is capable of bridging cracks (up to 0.3 mm) and forms a liquid-impermeable coating. It has been tested in accordance with the Water Resources Act (WHG § 63). It is also used as a WHG floor in collection channels and rooms such as HBV facilities (production, treatment or processing facilities) or LAU installations (storage, filling and handling).
Consumption: 2.5 kg/m2
More information about the Romex WHG EA coating.
Note:
Conductive and sealing properties
Resistance
Aesthetics and safety
Application
Tests and approvals
| System type: | System per m2: | Coating thickness: |
|---|---|---|
WHG system:
|
0.3 kg of Rompox 1505 primer + 1 kg of Rompox 1505 primer mixed with quartz 0.2 - 0.5 mm in a 1:1 ratio (by weight) + 2.5 kg of Romex WHG EA resin |
approx. 3 mm |

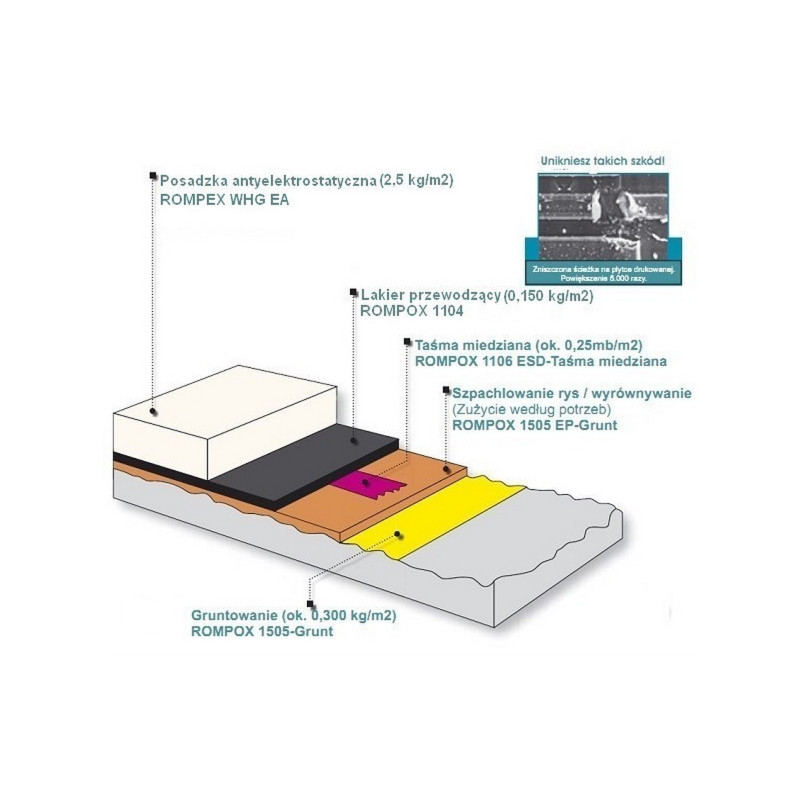

Anti-static system:
|
0.3 kg of Rompox 1505 primer + 0.25 linear metre of NX1106 copper tape + 0.15 kg of Rompox 1104 conductive coating + 2.5 kg of Romex WHG EA resin |
approx. 2 mm |
WHG anti-static system:
|
0.3 kg of Rompox 1505 primer + 1 kg of Rompox 1505 primer mixed with quartz 0.2 - 0.5 mm in a 1:1 ratio (by weight) + 0.25 linear metre of NX1106 copper tape + 0.15 kg of Rompox 1104 conductive coating + 2.5 kg of Romex WHG EA resin |
approx. 3 mm |
The systems presented are general recommendations. Each project should be treated individually. In case of any doubts, please contact us so that we can select the appropriate system for the specific problem.
