Rompox 1107 ESD is the ideal choice for companies operating in the electronics and electrical engineering industries.
The Rompox 1107 ESD flooring system features a resistance to ground (Ru) of < 1 × 109Ω and ensures the safe dissipation of electrical charges in accordance with DIN EN 61340 Parts 4-1/4-5/5-1/5-2, well below the limit values.
The high quality of Rompox 1107 ESD flooring is confirmed by its use by companies such as Audi, Bayer, Bosch, and Siemens.
The Rompox 1107 ESD flooring offers good flexibility and is resistant to mechanical loads associated with foot traffic and light vehicle traffic. It has good chemical resistance. It is also suitable for use as a decorative textured coating.
Rompox 1107 ESD is classified as fire resistance class Bfl-s1 (flame-retardant flooring).
Coverage: 1.8 kg/m2
More information Rompox 1107 ESD flooring.
Note:
Conductive properties
Resistance
Aesthetics
Application

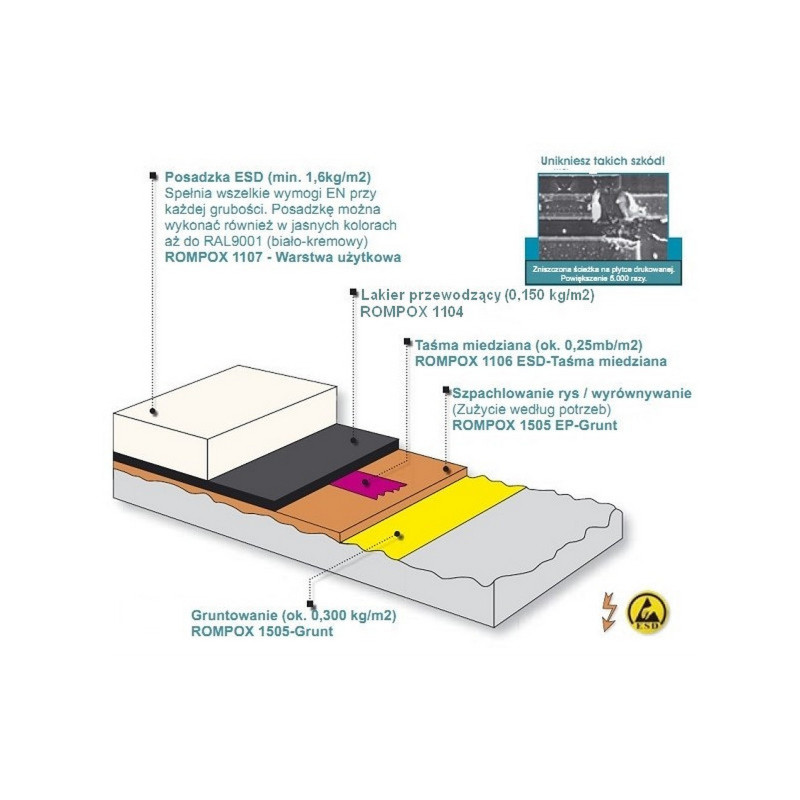

| System Type: | System for m2: | Coating thickness: |
|---|---|---|
ESD anti-static system:
|
0.3 kg of primer Rompox 1505 + 0.25 mb of copper tape NX1106 + 0.15 kg of conductive varnish Rompox 1104 + 1.8 kg of Rompox 1107 ESD resin |
approx. 1.5 mm |
The systems presented are general recommendations. Each project should be treated individually. In case of any doubts, please contact us so that we can select the appropriate system for the specific problem.
