• New
copy of SikaEmaco® T 1100 TIX - Noxan.pl

copy of SikaEmaco® T 1100 TIX

Fast-setting and rapid-hardening, flowable repair mortar for horizontal concrete surfaces. It features shrinkage-compensating properties and high strength.

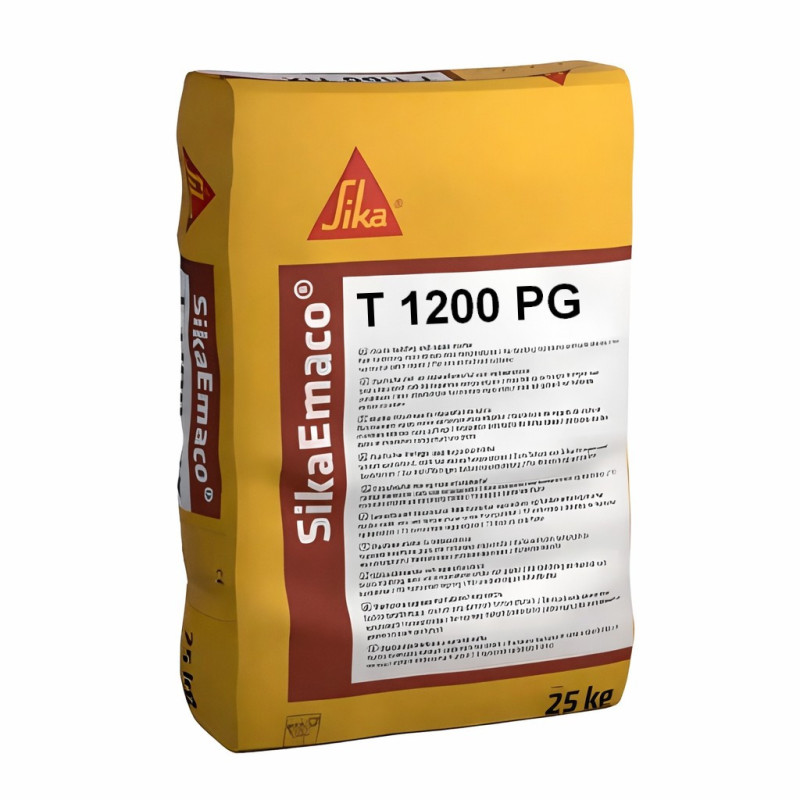

SikaEmaco® T 1200 PG is a one-component, fast-setting and rapid-hardening, flowable repair mortar, classified as R4 in accordance with the requirements of EN 1504-3.

The product is supplied as a dry, factory-prepared mix, ready for use after mixing with water. The formula is based on sulphate-resistant Portland cement (HSR LA) and hydraulic binders, combined with sands with optimized grading. It also contains PAN polymer fibers (polyacrylonitrile) and special additives that ensure rapid strength gain even at temperatures below zero, improved durability, and low drying shrinkage.

After mixing with water, a mortar with a fluid or flowable consistency is obtained, which can be easily placed manually or mechanically. The mortar is applied in layers with a thickness of 10–150 mm.

Applications of SikaEmaco® T 1200 PG:

  • repairs of structural horizontal concrete elements,
  • jointing of paving blocks,
  • bedding of small and large manhole frames using formwork,
  • fixing of street furniture elements,
  • optimization of renovation works in areas and facilities subject to traffic loads,
  • indoor and outdoor use,
  • use at low temperatures,
  • use in the most demanding conditions where very short downtime / out-of-service periods are required.

Approximate consumption:

to prepare 1 m3 of fresh mortar, approx. 2000 kg of SikaEmaco® T 1200 PG is required.

One 25 kg bag yields approx. 12.4 l of mortar (actual yield depends on the amount of mixing water).

Delivery: 3–5 business days.

Packaging
zł9,348.00 brutto

zł7,600.00 netto

zł9.35 brutto za 1 kg
keyboard_arrow_down

Ask about the product

Fast return to service

Rapid strength gain - return to service after approx. 2 hours (at +20°C)

Easy application

Easy application

Flowable consistency facilitates application

Flowable consistency - facilitates application

Key properties:

Application and execution conditions

  • easy application,
  • flowable consistency
    facilitating application,
  • after adding gravel
    application in thicker layers is possible,
  • can be used at temperatures
    below zero down to -5°C.

Strength and crack reduction

  • very rapid strength gain
    return to service after approx. 2 hours (at +20°C),
  • high strength
    early and final,
  • low shrinkage
    and minimized susceptibility to cracking thanks to PAN fibers.

Durability and service resistances

  • excellent adhesion
    and durability,
  • excellent resistance
    to freeze/thaw cycles,
  • high resistance
    to hydrocarbons,
  • very good slip resistance
    also in wet conditions.

Structural protection and compliance

  • very good reinforcement protection
    thanks to very low water absorption and good carbonation resistance,
  • CE marking in accordance with EN 1504-3
    R4-class cement mortar for structural and non-structural repair of concrete in buildings and civil engineering works, compliant with EN 1504-3:2005, with a declaration of performance based on a factory production control conformity certificate issued by a notified body certifying factory production control, bearing the CE mark.

Technical information

Compressive strength

  +20°C1) +5°C2) -5°C3)
2 hours ≥ 25 MPa – –
3 hours – ≥ 15 MPa ≥ 8 MPa
4 hours ≥ 35 MPa ≥ 20 MPa ≥ 12 MPa
1 day ≥ 60 MPa ≥ 55 MPa ≥ 50 MPa
7 days ≥ 70 MPa ≥ 65 MPa ≥ 65 MPa
28 days ≥ 80 MPa ≥ 80 MPa ≥ 80 MPa

1) Curing temperature, water and powder: +20°C

2) Curing temperature, water and powder: +5°C

3) Curing temperature: -5°C; water and powder temperature: +20°C

Modulus of elasticity in compression

Value 43 000 MPa
Standard (EN 13412)

Flexural strength

1 day ≥ 7 MPa
7 days ≥ 8 MPa
28 days ≥ 10 MPa

Shrinkage

28 days ≤ 0.300 mm/m

Pull-off strength

Adhesion to concrete, mortar 28 days ≥ 3.0 MPa
Adhesion to concrete after freeze–thaw cycles, mortar 28 days (50 cycles, de-icing salts exposure) ≥ 3.0 MPa

Reaction to fire

Class A1
Standard (EN 13501-1)

Frost resistance - resistance to de-icing salts

Scaling resistance (after 56 freeze–thaw cycles) very good (< 0.10 kg/m2)

Capillary absorption

28 days ≤ 0.1 kg·m-2·h-0.5

Carbonation resistance

28 days meets dk ≤ that of control concrete

Chloride ion penetration

Level Low

Chloride ion diffusion coefficient

Value < 1 × 10-12 m2/s

Service temperature

Range -30°C to +80°C

Ring test

Cracking tendency No cracks (up to 180 days)

Application

Mixing ratio

Water amount 2.7 to 3.2 l of water per 25 kg bag

Layer thickness

Repair mortar 10 - 100 mm
Installation mortar 25 - 150 mm

Product temperature

Minimum / Maximum Minimum +5°C / Maximum +30°C

Ambient temperature

Minimum / Maximum Minimum -5°C / Maximum +30°C

Substrate temperature

Minimum / Maximum Minimum 0°C / Maximum +30°C

Pot life

Time ~ 20 minutes at +20°C

(higher temperatures shorten the pot life, and lower temperatures extend it)

Load-bearing capability

Light traffic (+20°C) ~60 minutes
Full load (+20°C) ~120 minutes

Fresh mortar density

Value ~ 2.25 g/cm3

Consumption

Consumption per 1 m3 of fresh mortar approx. 2000 kg of SikaEmaco® T 1200 PG
Yield from a 25 kg bag approx. 12.4 liters of mortar
